Omnimount CL-M 23" - 37" Cantilever Mount

Omnimount CL-M 23" - 37" Cantilever Mount

( Over 20 years old, in my opinion is better designed an Built stronger, than anything I can see New.

Used item fully functioning, the sam as one in pictures)

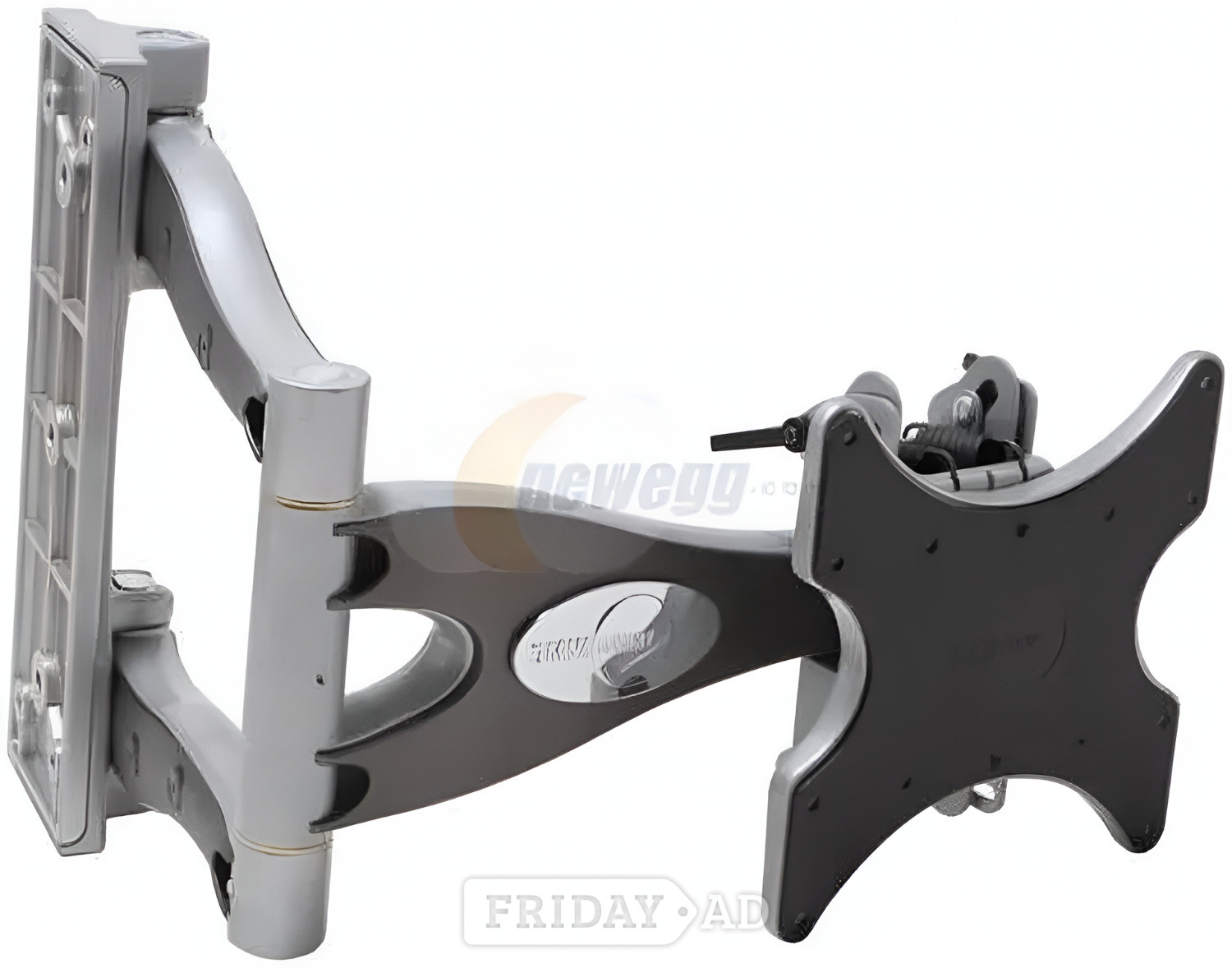

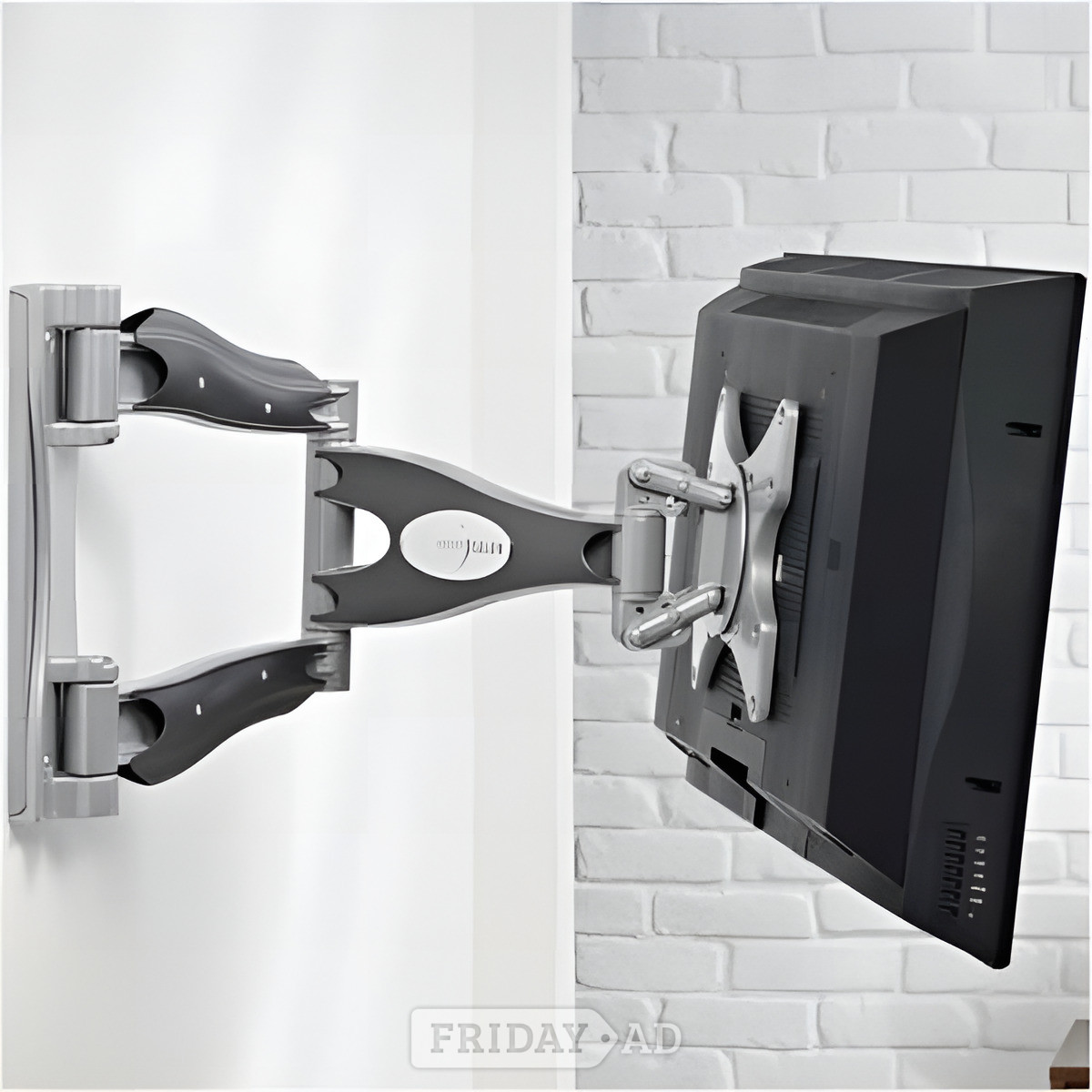

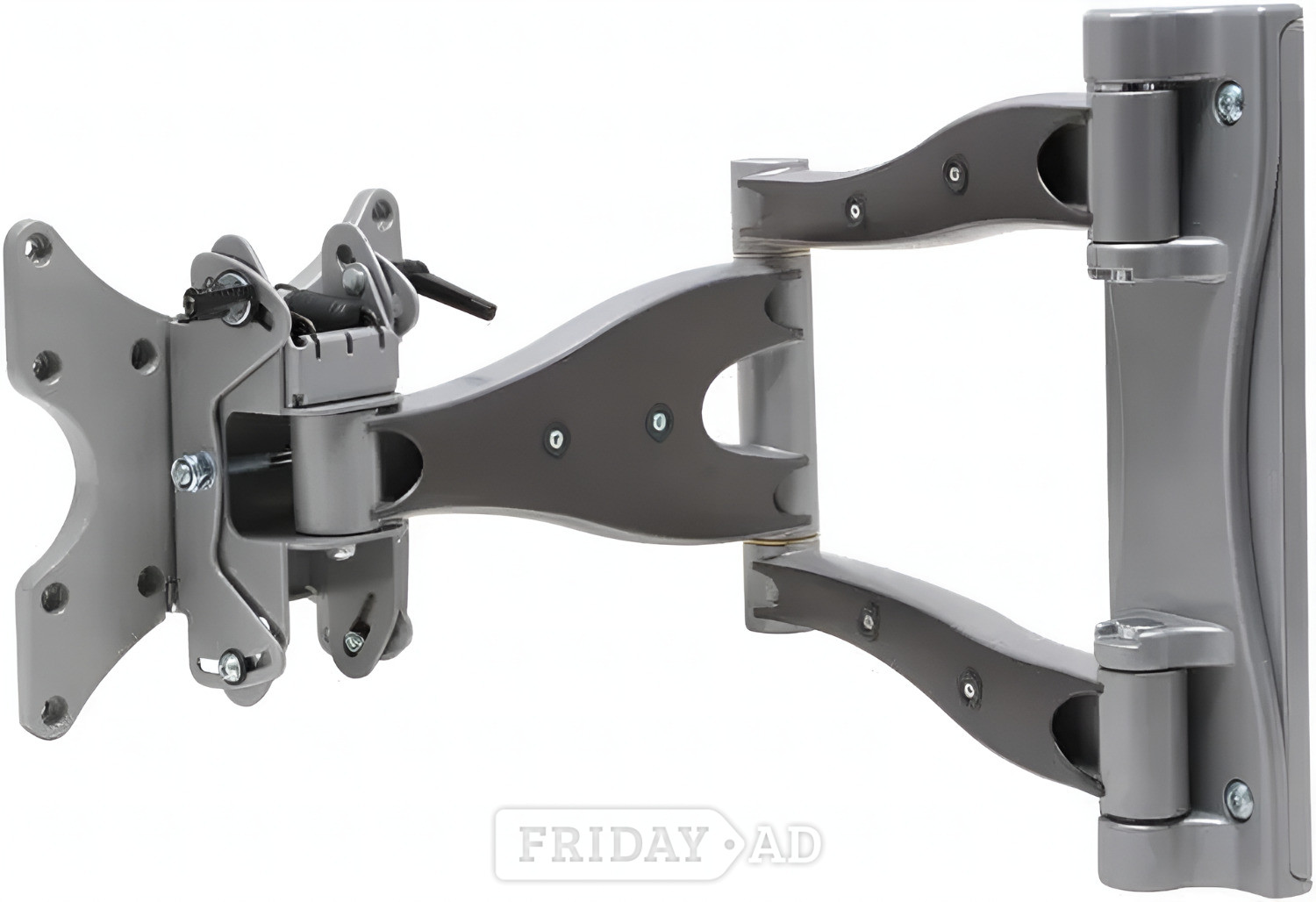

The OmniMount CL-M is a medium full-motion cantilever mount designed to support 23" to 37" flat panels (though manufacturer specs rate the frame for up to 47" displays) with a maximum weight capacity of 80 lbs (36.3 kg). It features a robust aluminum build, flexible tilt and swivel range, and a single-stud wall installation design. [1, 2]

Core Technical Specifications

Screen Size Fit: Fits most 23" – 37" displays (compatible up to 47" depending on weight).

Weight Limit: Supports up to 80 lbs (36.3 kg).

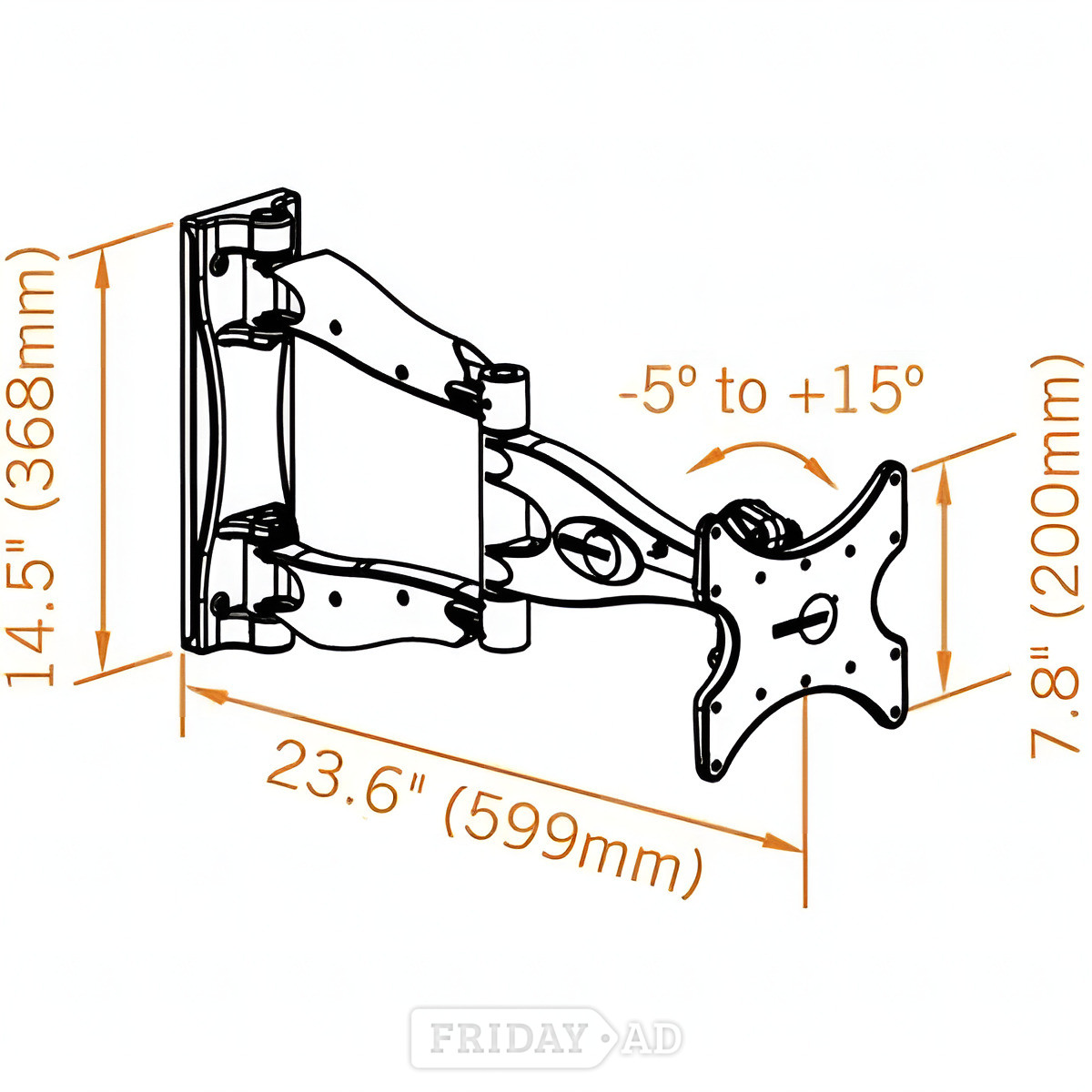

Tilt Range: -5º to +15º.

Extension Distance: Extends up to 24.02" (610 mm) from the wall.

Low Profile Depth: Folds to a mounting profile depth of 5.32" (135 mm).

VESA Compatibility: Ranges from 100x100 mm up to 400x400 mm (via included adapters). [1, 2]

Design and Build Features

Material: Lightweight die-cast aluminum construction with an I-beam arm structure for enhanced strength.

Movement Mechanism: Features a 4-link tilt mechanism for smooth motion and tapered bearings for easy panning.

Installation: Utilizes a single-stud or solid wall mounting layout with a Lift n' Lock system.

Management: Built-in double-capacity cable management channels to route and hide wires.

Adjustments: Includes built-in horizontal screen leveling.
