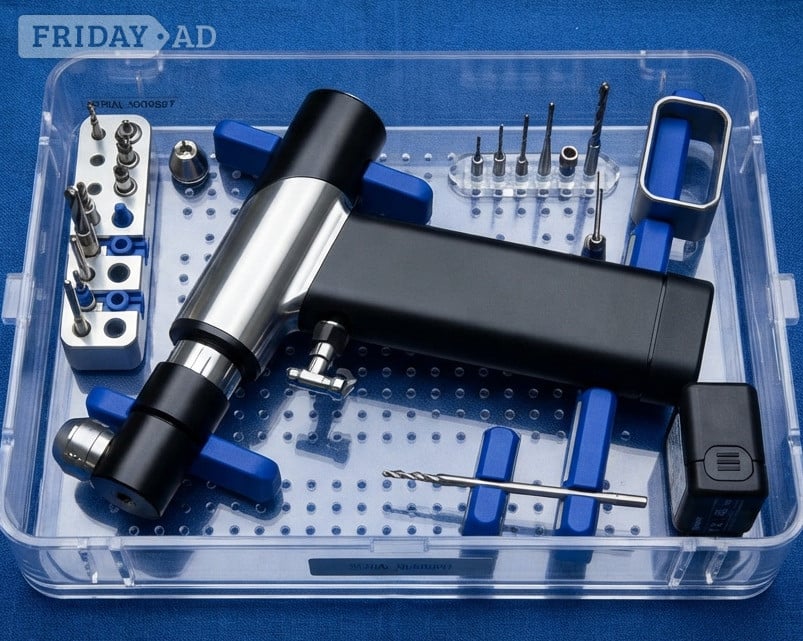

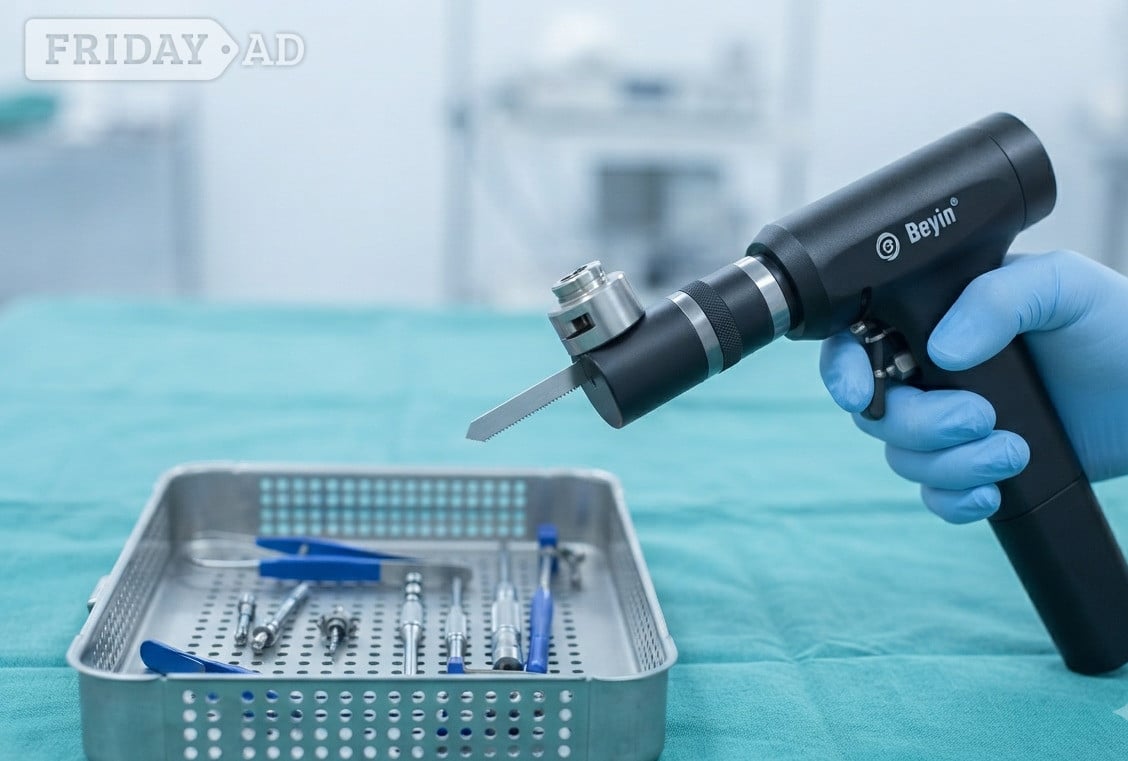

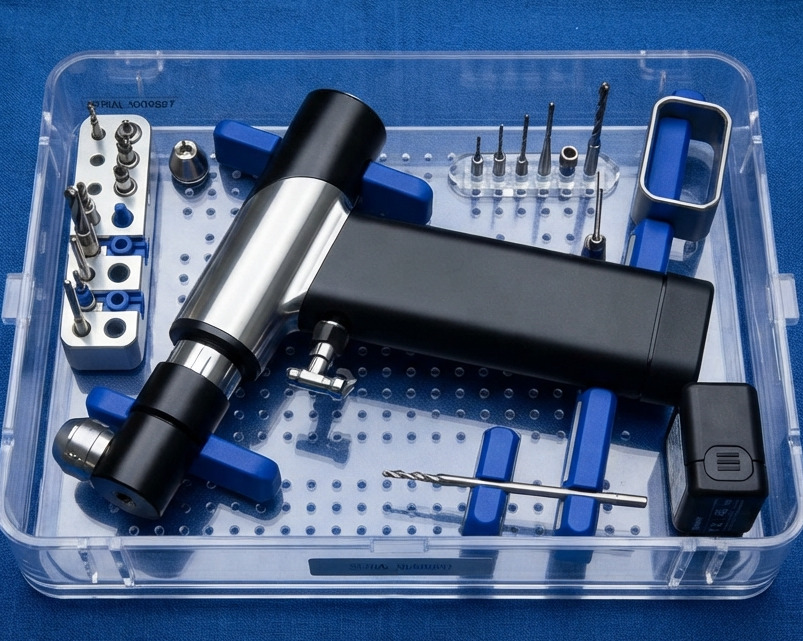

BJ1101 Sagittal Oscillating Saw – Orthopedic Surgical Bone

The BJ1101 Sagittal Oscillating Saw is an orthopedic surgical power tool designed for precise bone cutting during joint and orthopedic surgical procedures. It features an ergonomic design, low-noise operation, and a high-speed oscillating mechanism for controlled cutting performance.

The unit operates at 14.4V with an output power of ≥90W and an oscillation rate of up to 15,000 oscillations/minute. The handpiece is designed for sterilization at up to 135°C, subject to the manufacturer's sterilization instructions.

Different saw blade lengths and thicknesses are available, including commonly supplied blade lengths of 70mm, 90mm and 100mm, with thicknesses of 0.8mm, 1.0mm, 1.2mm and 1.27mm. Customized blade specifications may also be available.

Key Features

Model: BJ1101

Sagittal / oscillating surgical saw design

Designed for orthopedic bone cutting applications

Ergonomic handpiece design

Output power: ≥90W

Oscillation speed: 0–15,000 osc/min

Operating voltage: 14.4V

Noise level: ≤75 dB

Handpiece sterilization: up to 135°C

Multiple saw blade sizes available

Suitable for professional medical and orthopedic applications

Reusable handpiece design

Technical Specifications

Specification Details

Model BJ1101

Product Type Sagittal / Oscillating Saw

Application Orthopedic Surgery

Output Power ≥90W

Oscillations 0–15,000 osc/min

Operating Voltage 14.4V

Noise ≤75 dB

Sterilization Temperature 135°C

Common Blade Lengths 70mm, 90mm, 100mm

Common Blade Thickness 0.8mm, 1.0mm, 1.2mm, 1.27mm

Standard Configuration

1 × Saw handpiece

1 × Battery

1 × Charger

1 × Saw blade

1 × Aseptic battery transfer ring

1 × Operating manual

1 × Guarantee card

Applications

The BJ1101 is intended for professional orthopedic applications involving bone cutting, including procedures such as joint surgery. It should only be operated by appropriately trained medical professionals and according to applicable medical-device instructions and regulations.

Warranty: Manufacturer information lists a 2-year warranty for the handpiece, while the battery and other fast-consumption items have a shorter warranty period.
